Product Description
Simrad NSS 4 16 MFD ComboThe Simrad NSS 4 16 is a premium 16-inch multifunction display built for serious offshore boats that need fast charting, powerful sonar integration and full vessel-system control from one large screen.With a bright Full HD display, Simrad’s hybrid touch/rotary/keypad controls and an 8-core... Read MoreGuaranteed Safe Checkout
Simrad NSS 4 16 MFD Combo

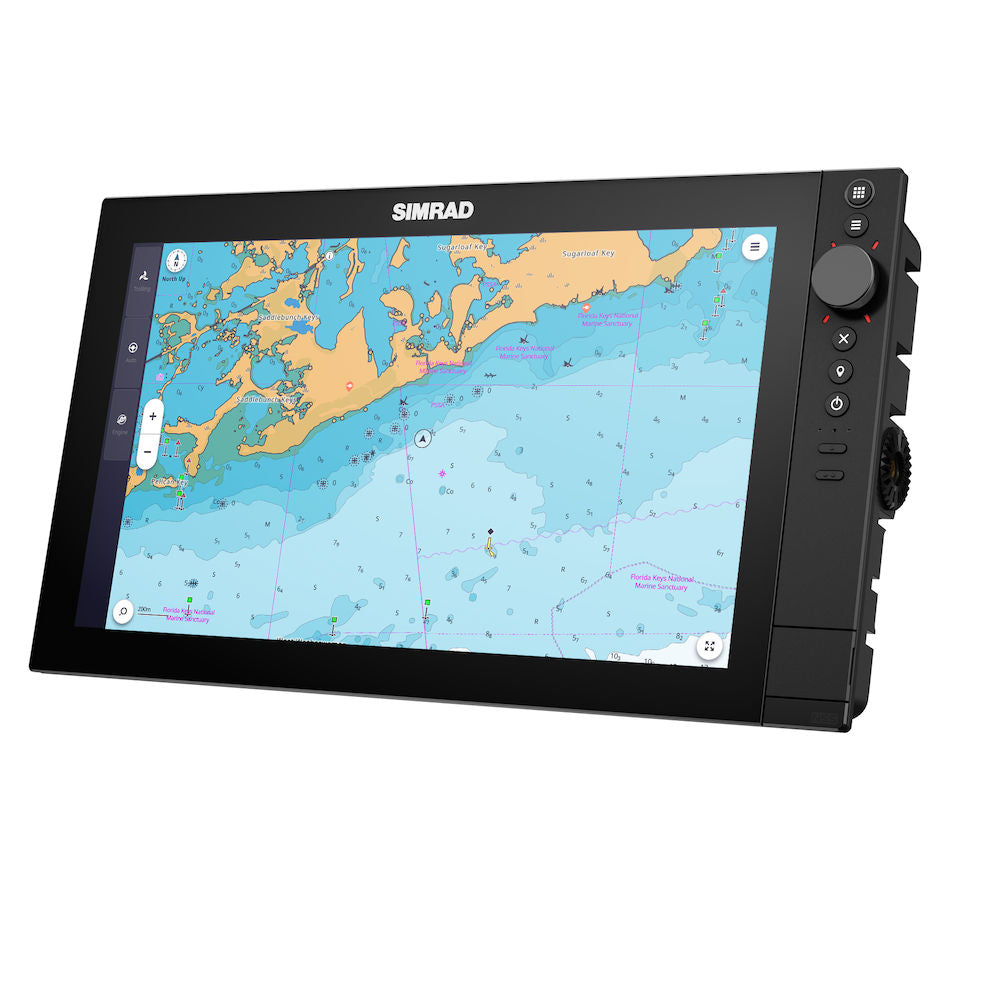

The Simrad NSS 4 16 is a premium 16-inch multifunction display built for serious offshore boats that need fast charting, powerful sonar integration and full vessel-system control from one large screen.

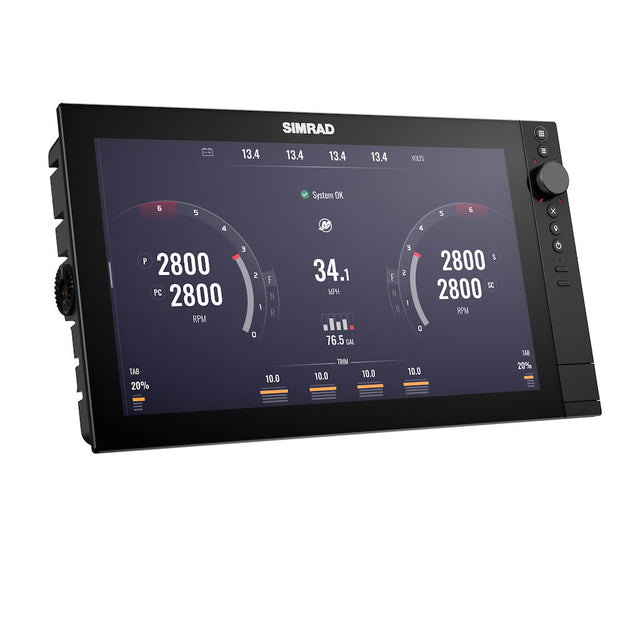

With a bright Full HD display, Simrad’s hybrid touch/rotary/keypad controls and an 8-core processor, the NSS 4 is designed to stay fast and easy to operate whether you are navigating, sounding, running radar or managing connected marine systems.
Key Features:
- 16-inch 1920 x 1080 Full HD display
- More than 1200 nits screen brightness
- Touchscreen plus rotary dial and keypad controls
- Qualcomm 8-core processor
- Built-in dual-channel 1kW CHIRP sonar support on applicable models

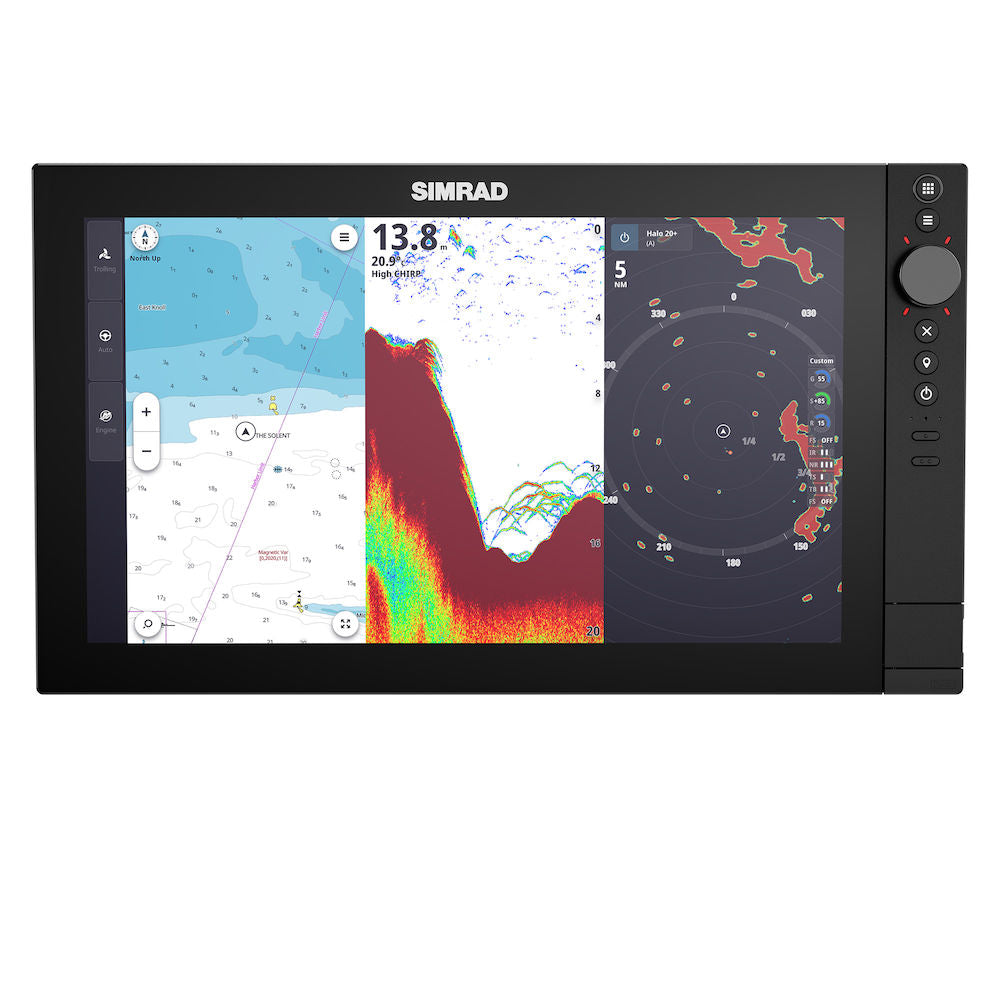

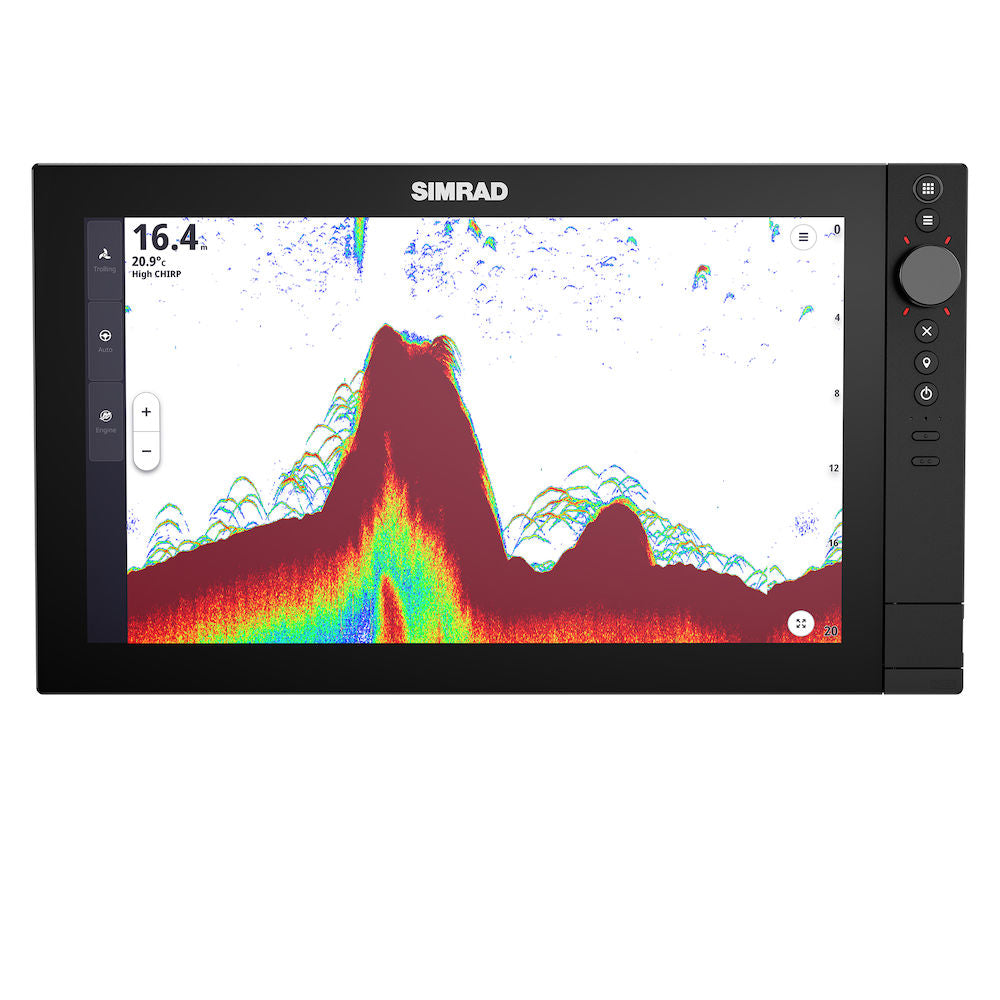

- Supports CHIRP, DownScan, SideScan, Active Imaging and Active Imaging HD
- Compatible with Simrad S3100 and S5100 sonar modules
- NMEA 2000, Ethernet, Wi-Fi and dual microSD connectivity

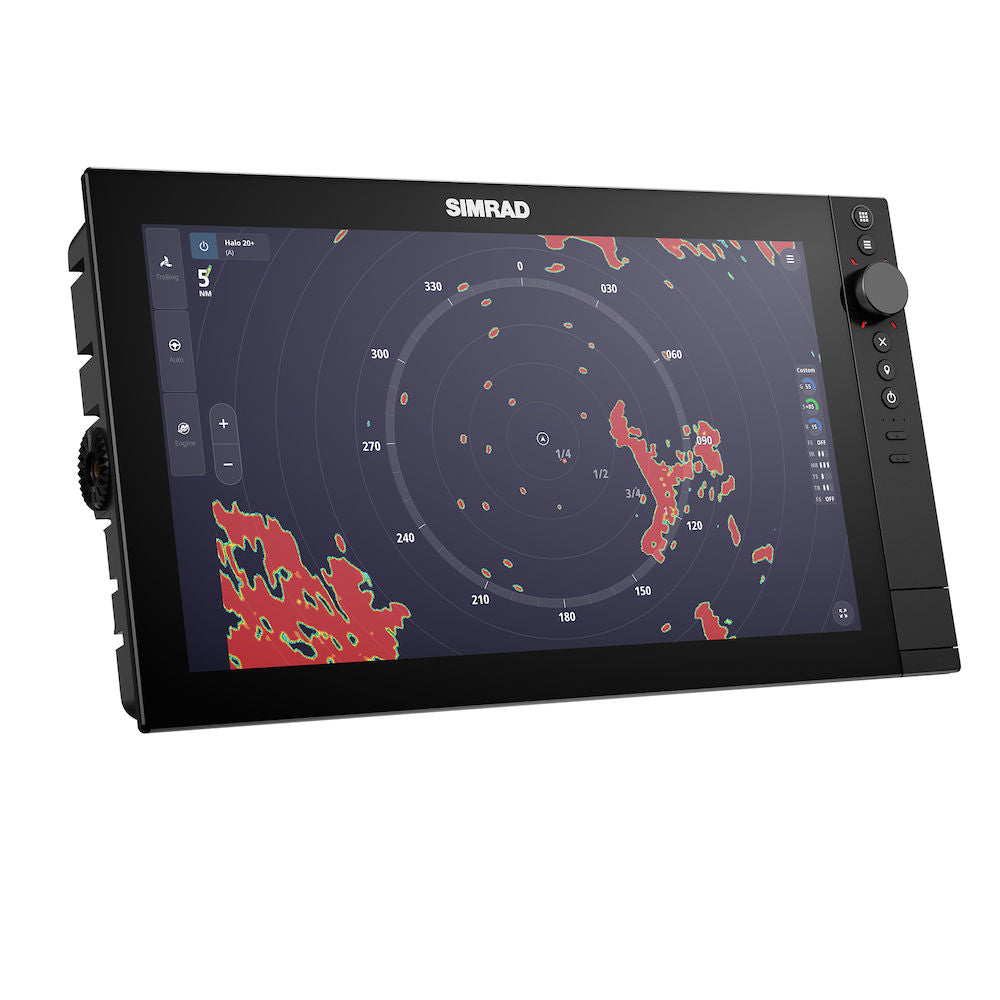

- Compatible with Simrad radar, autopilot and trolling-motor systems
- IPX6/IPX7 water resistance
Specifications
| Display | 16-inch |
| Resolution | 1920 x 1080 |
| Brightness | >1200 nits |
| Weight | 3.8kg |
| Supply Voltage | 12/24V DC |
| Max Power Consumption | 43.5W |
| Waterproof Rating | IPX6 / IPX7 |
| GPS | 10Hz GNSS |
| NMEA 2000 | 1 x Micro-C |
| Ethernet | 2 ports |
| Card Slots | 2 x microSD |
What Else Do I Need?
Your final setup depends on how you want to use the unit. Transducer choice, radar, sonar modules, autopilot components and networking accessories vary by boat and fishing style. Contact TackleWest with your boat, current electronics and target depths and we can help configure the complete NSS 4 system correctly.
